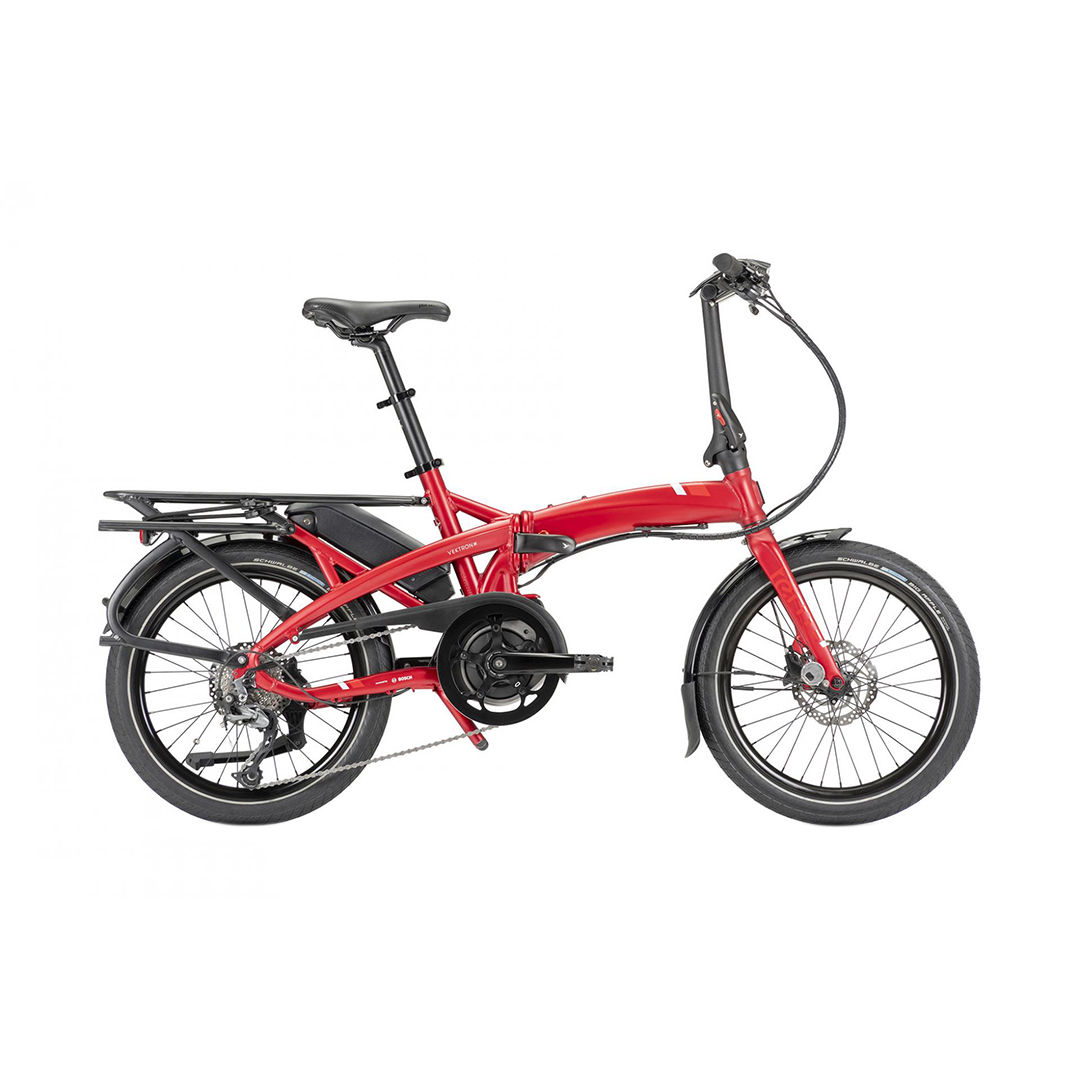

Tern Vektor Q9
Ride it, Fold it, Go Further
The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the boot of your car on your next trip, so you can explore further.
- German-engineered Bosch Active Line electric drivetrain—the industry leader in electric bike technology
- Hydraulic disc brakes for all-weather stopping power
- New frame design, with a reclining battery for a lower center of gravity and better ride
- Integrated Atlas Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
Specifications
Please note these specifications are subject to change by the manufacturer
SPEEDS:
1 x 9
WEIGHT:
21.9 kg
GEAR INCHES:
33” - 97” (2.65 - 7.72 m)
FOLDING SIZE:
410 × 860 × 680 mm (16.1 × 33.9 × 26.8 in)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
62 - 69 cm (24.4 - 27.2 in)
DISTANCE: SADDLE TO PEDAL:
67 - 110 cm (26.4 - 43.3 in)
SUGGESTED RIDER HEIGHT:
147 - 195 cm (57.9 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
125 kg (275.6 lb)
MAX RIDER WEIGHT:
105 kg (231.5 lb)
FRAME:
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies, Vektron G2 Frame
FORK:
Tern Tarsus, 6061-Al, hydroformed
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Tern Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Flat bar, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Velo ergonomic, lock-on
SADDLE:
Tern Porter, patented GripPad design
SEATPOST:
Tern Telescope, 34.9 mm, Lite 2014-AL
SEATPOST CLAMP:
Oversize, 6061-AL, 2pc
BRAKES
Shimano, hydraulic disc
BRAKE LEVERS:
Shimano, hydraulic disc
BRAKE CABLE & HOUSING:
Shimano, hydraulic disc
RIMS:
Kinetix Comp, for disc
TYRES:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
TRANSMISSION
Shimano Alivio, 1 x 9 spd, trigger
REAR DERAILLEUR:
Shimano Alivio Shadow
CRANKSET:
Vektron custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL:
Shimano 11-32T, 9 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
9 spd, DHT for eBike, GST corrosion resistant coating
PEDALS:
MKS EZY
SHIFTER CABLE & HOUSING:
Jagwire LEX-SL, slick treatment, alloy ferrules
MOTOR:
Bosch Active Line, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 40 Nm
BATTERY:
Bosch PowerPack 400 Wh
DISPLAY:
Bosch Purion, 4 mode selectable, walk assist
RANGE:
400 Wh: 50-130 km (30-80 mi)
CHARGER:
Bosch Compact Charger/ Bosch Standard Charger
ACCESSORIES:
Bell, Chainguard, KickStand, Luggage Socket, Front and Rear Lights, Mudguards, Rear Rack
